Luftridå Pamir
FR127

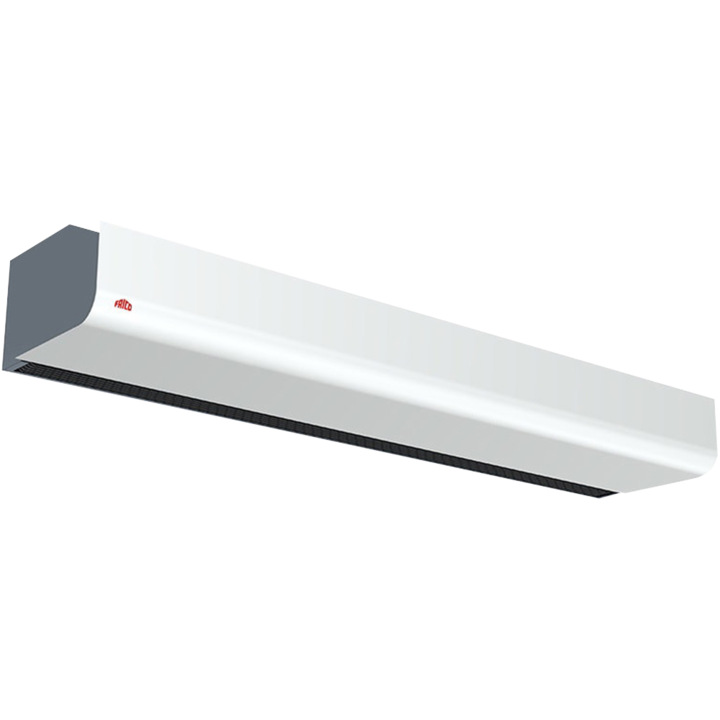

Pamir 2500 is a slim air curtain for entrances with an energy-efficient control system.
Read more
Product Information
- Pamir 2500 is a slim air curtain for entrances with an energy-efficient control system.
With a recommended installation height of 2.5 m, it is designed for horizontal mounting in stores, offices, and public spaces. - The air curtain, along with the intelligent control system, allows you to easily optimize your comfort and save energy. The recommended installation height may vary depending on the specific location. The control system is ordered separately.
Product specifications:
- Type of installation: Horizontal
- Max. installation height: 2,500 mm
- Housing color: Traffic white
- Housing color, NCS: NCS S 0500-N
- Housing color, RAL: RAL 7046
- Protection class: IP20
- Surrounding operating temperature (dry air): -20 to 30 °C
- Height: 210 mm
- Depth: 345 mm
- Control/motor voltage: 230 V
- Frequency: 50; 60 Hz
- Heating voltage: 400 V
- Phase: 3~
@@aipolicy
Attributes
Specifications
| VG_BlockedItemDeliveryCountry | fi;dk;no |
| Product height (mm) | 270 |
| VG_Dimensions.Width | 420 |
| Product Weight (kg) | 0.01 |
| Pack. per pallet | 9998 |
| Packaging | 1 PCS/CASE |
| Quantity per salesunit | 1 |
| Packing Height (mm) | 270 |
| Packaging width (mm) | 420 |
| Package Length (mm) | 1125 |
